Spunfab

Product Overview

The products listed here are only a selection of our core product offering. If you have a challenging or special application, please do not hesitate to bring it to us. Spunfab heat-sealing, adhesive webs are available in a wide range of polymer formulations, basis weights, and roll widths, and can be developed to meet special requirements, or to meet particular industry codes and specifications.

Base ChemistryMelting RangeHeat ResistanceSteam ActivatablePlasticizer Migration ResistanceWash ResistanceDry CleaningHF WeldableComments
CoPolyamide82 - 195ºC80 - 135ºCBlack Check40 - 95ºCBlack CheckBlack CheckHigh chemical stability and oil resistance
CoPolyester70 - 156ºC80 - 155ºCBlack Check30 - 60ºCBlack CheckBonds a variety of substrates as well as PVC
Polyolefins68 - 130ºC65 - 110ºC30ºCEfficient, effective and versatile adhesive
Ternary102 - 170ºC110 - 160ºCBlack CheckBlack Check60ºCBlack CheckAggressive adhesive for special requirements
Polypropylene142 - 170ºC140 - 170ºC30ºCBlack CheckEconomical, strong and light weight
Polyurethane90 - 160ºC70 - 150ºCBlack Check30 - 75ºCBlack CheckSuperior adhesion in demanding applications

Typical Substrates of Spunfab Adhesive Web Products

  • Metal
  • Paper
  • Wood
  • PVC
  • PU Foam
  • PU Film
  • Polyolefin Foam
  • Polyolefin Film
  • Textiles
  • Leather
  • Glass Fibre
  • Nonwovens
  • Carpets
  • Rubber
  • Carbon
  • Plastics
  • Aramids
  • And more…

Activating Spunfab Adhesive Webs

Spunfab Adhesive Webs are activated by one of three recommended sources of heat and pressure:

  • Thermal
  • RF or HF Frequency
  • Ultrasonic

We will assist you in identifying the right heat and pressure sources for your particular application.

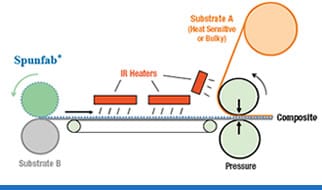

Spunfab Adhesive Open Infa-Red System

Open Infra-Red System

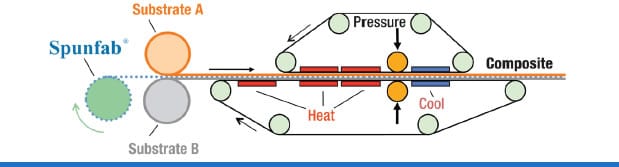

Spunfab Adhesive Continuous Fusing

Continuous Fusing

Spunfab Features and Benefits

Solvent-Free

No clean up or special handling requirements, or use of personal protection equipment (PPE)

Easy-To-Handle

Pre-measured. High throughput with minimal downtime.

Reactivatable

Spunfab’s thermal plastic, engineered adhesive webs are carefully designed to be used for multiple processes.

Breathable

Substrates perform at desired effect with minimal impedance.

Porosity

Allows filtered media to perform at intended specifications with minimal obstruction.

Soft Hand

Retains a substrate’s comfort and drapability.

Environmentally Responsible

We do not produce adhesive webs that involve harmful solvents.

Consistent Area Coverage

Can reduce adhesive weight up to 50%, minimizing loss into substrate as with powders or sprays.

Pre-Measured Adhesive

Eliminates adhesive distribution control during lamination.

Individually Engineered Webs

Ensures performance for each unique application.

Recyclable

When properly chosen, the adhesive web enhances the recyclability of the composite.

Bonding System Flexibility

Can easily change adhesive chemistry by simply changing the adhesive web layer.
